Magnetic sensor-based localization and deep learning

A novel approach to indoor localization that uses magnetic field data from smartphone sensors and deep learning

One of the reasons smartphones have become such an integral part of our lives is that their built-in sensors give us information that can be used to create novel user applications. A large number of these applications rely on a person’s location such as step-by-step navigation, mobility solutions, personalized advertisements and assistance to the blind and the elderly (1). These location-based services depend on positioning technology which needs to be robust in both outdoor and indoor spaces and, although navigation satellite systems such as GPS provide reliable outdoor positioning, a corresponding solution is yet to be found for indoor environments – environments with walls which GPS signals have difficulty penetrating.

Numerous techniques for smartphone-based indoor positioning have been developed over the years to substitute GPS. Most have individual strengths and weaknesses depending on the conditions in which they operate. When combined, they can improve both the accuracy and reliability of a service (2) but no single solution can guarantee a reliable and universal service by itself.

WIFI/BLE-based localization

The most common approach for indoor positioning is to use existing Wi-Fi and/or dedicated Bluetooth beacons. The basic idea is to use the radio signal strength reception as a measure of proximity. As these systems depend on the infrastructure, they require a large number of access points and broad coverage to achieve a good level of performance. Fluctuations in the signals they receive often lead to inaccurate positioning results and a localization error of typically 2 to 3 metres.

Magnetic field sensors for localization

The source of the Earth’s magnetic field, also known as the ‘geomagnetic’ field, lies inside the planet extending outwards into space. This pervasive environmental feature exists at every point on the planet but with differing levels of intensity. It’s relatively constant over short distances yet disturbances, induced by various ferromagnetic objects such as walls, doors, etc., create unique magnetic signatures, with unique patterns, that can be used to determine a position.

Frame of reference

We can easily capture the values of the magnetic field along the X, Y and Z axes at a high rate of up to 50–100 Hz using the magnetic sensor (magnetometer) in a smartphone. However, because it’s a smartphone sensor, the data comes in the phone coordinates frame which means that, even if you stand still, the reported magnetic values along the X, Y, Z axes will not be the same if you’re holding the phone up in front of you or if it’s upside down in your pocket. To make this sensor data usable, we need to convert the recorded values into a global, Earth coordinate frame, also known as NED (North-East-Down) or ENU (East-North-Up). This requires knowing the orientation of the phone in space which can be calculated using other IMU (Inertial Measurement Unit) sensors such as the accelerometer and gyroscope. The Madgwick algorithm is commonly used to do this calculation but many others algorithms exist which may perform better depending on the conditions (5).

Once we have the Earth coordinates frame of reference an offline step of data collection and pre-processing is required us to create a magnetic map of the building. Essentially, someone needs to walk through the building and measure the magnetic field along their path. These magnetic values can be visualized in a heat map as in Figure 2 below.  This heat map also shows there may be areas with lower and higher values which is good for navigation purposes i.e. the more the features are distinct, the “easier” it will be to locate the user.

Positioning

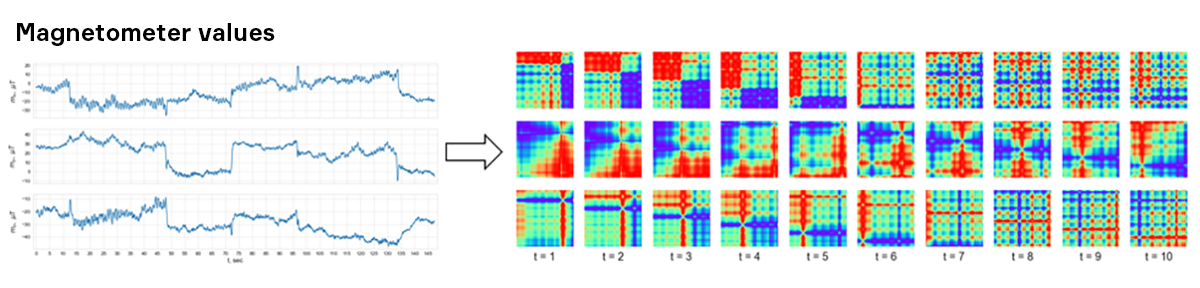

There are several ways to localize a user on based on magnetic sensor readings on the map and have developed a novel method that converts 1D time series of magnetic readings into 2D images.

We then use a Convolutional Neural Network (CNN) to obtain hidden features and patterns to regress the user position and localize them.

We learned that, occasionally, two subsequent magnetic readings may result in two locations that are far away from each other. This happens if these two locations exhibit similar “magnetic patterns”.  If no additional information is given, the algorithm becomes “confused” and has difficulty in determining the correct location. Recurrent Neural Networks (RNNs) can help overcome this by providing the localization pipeline with more context such as temporal dimensions and by “constraining” subsequent readings so that they be close to each other.

Results and future work

Our approach has been tested the on publicly available MagPie dataset with promising results. This dataset was collected in the University of Illinois and covers three buildings. The received accuracy error was in the range 0.4m–1.1m with more details available in our papers (6, 7).

Although the results were good in an “experimental” setting, the real world presents more challenges with its multitude of devices, different sensor manufacturers, uncalibrated sensors and moving objects, such as elevators, that can affect the magnetic field. Nevertheless, we believe this approach has many benefits – no additional infrastructure required, more stable than WiFi signal, more robust or more privacy friendly than phone camera image-based localization – and that it can greatly improve indoor localization methods for better services. We’re currently experimenting with the more advanced ‘Transformer’ architectures that shown improvement over RNNs and LSTMs in other domains and after that we plan to fuse magnetic based positioning with visual based positioning, to further improve the accuracy.

References:

1. Location-Based Services (LBS) and Real-Time Location Systems (RTLS) Market by Component (Platform, Services and Hardware), Location Type (Indoor and Outdoor), Application, Vertical, Region – Global Forecast to 2025. Markets and Markets, June 2020.

2. The IPIN 2019 Indoor Localisation Competition – Description and Results, F. Portorti et al. 2019.

3. Imaging Time-Series to Improve Classification and Imputation, Z. Wang and T. Oates, Proceedings of the Twenty-Fourth International Joint Conference on Artificial Intelligence (IJCAI), 2015.

4. Magnetic Positioning Indoor Estimation Dataset (MagPIE), BRETL Research Group.

5. On Attitude Estimation with Smartphones, INRIA.

6. Magnetic sensor-based indoor positioning by multi-channel deep regression, L. Antsfeld, B. Chidlovskii, D. Borisov, ACM Conference on Embedded Network Sensor Systems (SenSys), Yokohama, Japan, 16-19 November, 2020.

7. Magnetic field sensing for pedestrian and robot indoor positioning, L. Antsfeld, B. Chidlovskii, International conference on Indoor Positioning and Indoor Navigation (IPIN) 2021, Lloret de Mar, Spain, 29 November – 2 December, 2021 (to appear).
